Projects are available on the Professional plan.
A project groups multiple dives from the same job into one cohesive inspection report you can share with stakeholders — complete with map overlays, annotations, media, and a block-based report editor.
Prefer video? Watch the Blueye Cloud walkthrough — this section starts at 14:10. You can also open the public example project — no sign-up required.
Create a project and add dives
- Go to the Projects tab.
- Select New project and give it a name.
- On the Dives tab, select Add dives to include the dives that belong to the job. Their media, tracks, and annotations follow automatically. You can also attach planned Missions to the project.

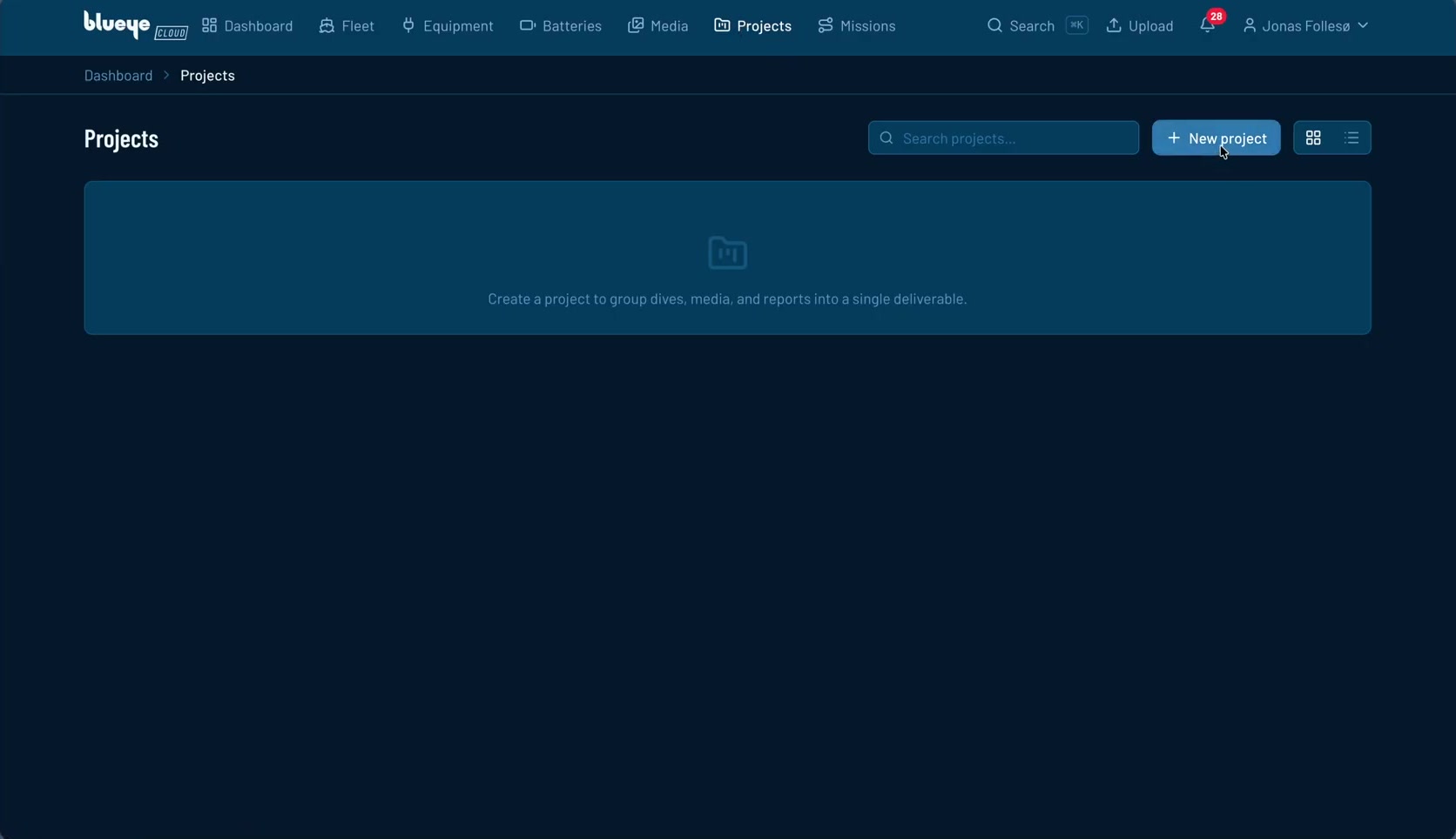

Create a project to group dives, media, and reports into a single deliverable.
Set status, dates, and summary
The project Overview tab holds the project metadata your stakeholders see first: a status (for example Draft while you are still working), start and end dates, a summary, and tags. Keep the status up to date — it shows as a badge on the project everywhere.

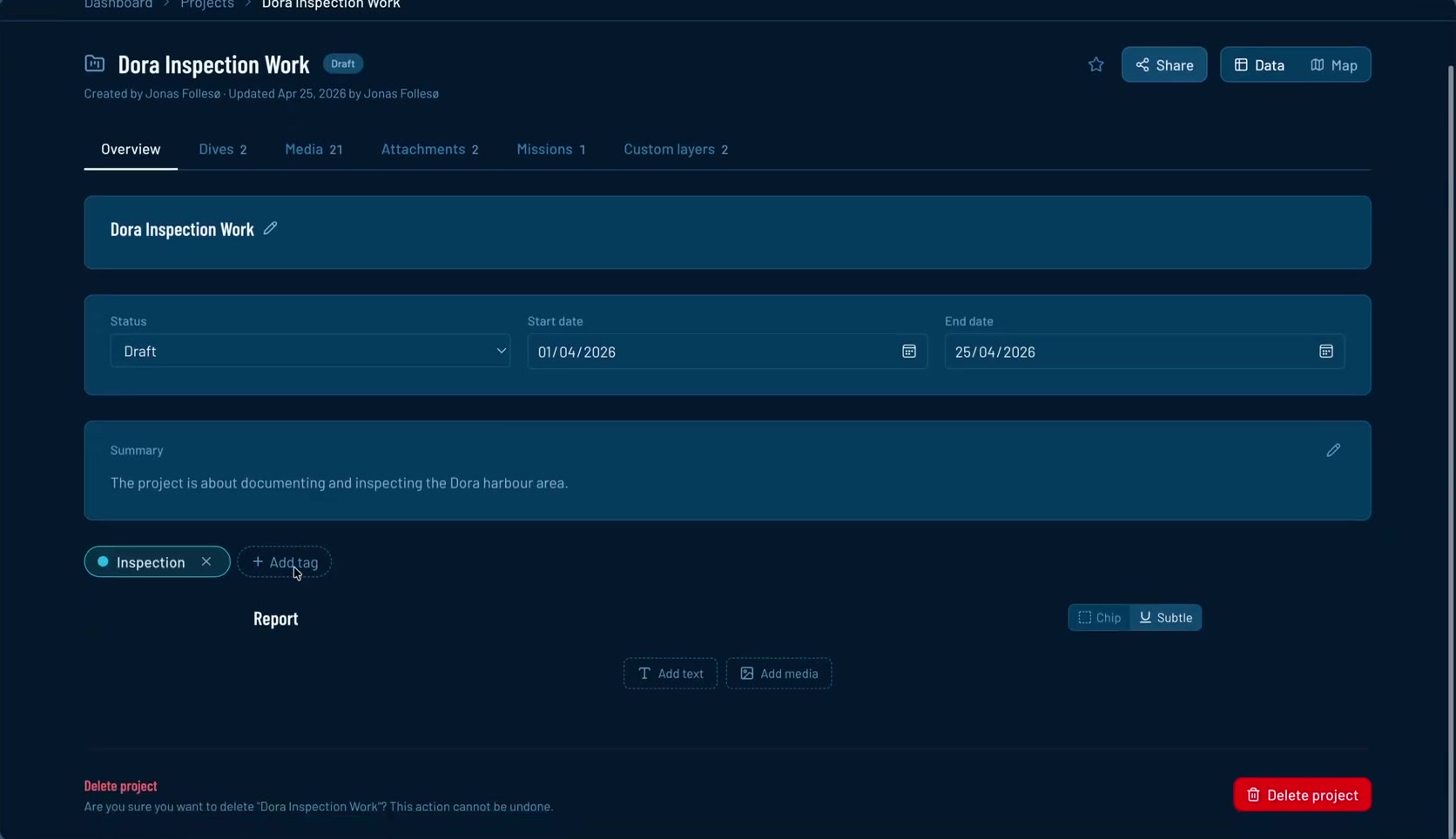

Status, dates, summary, and tags live on the project Overview tab.
Upload custom map layers
Give your project map context by uploading your own layers under the Custom layers tab. Supported formats include MBTiles, PMTiles, and PNG image tiles (for example bathymetry or sonar mosaics) and GeoJSON, TopoJSON, KML, and KMZ vector data. Toggle each layer on and off on the map with its On map switch.

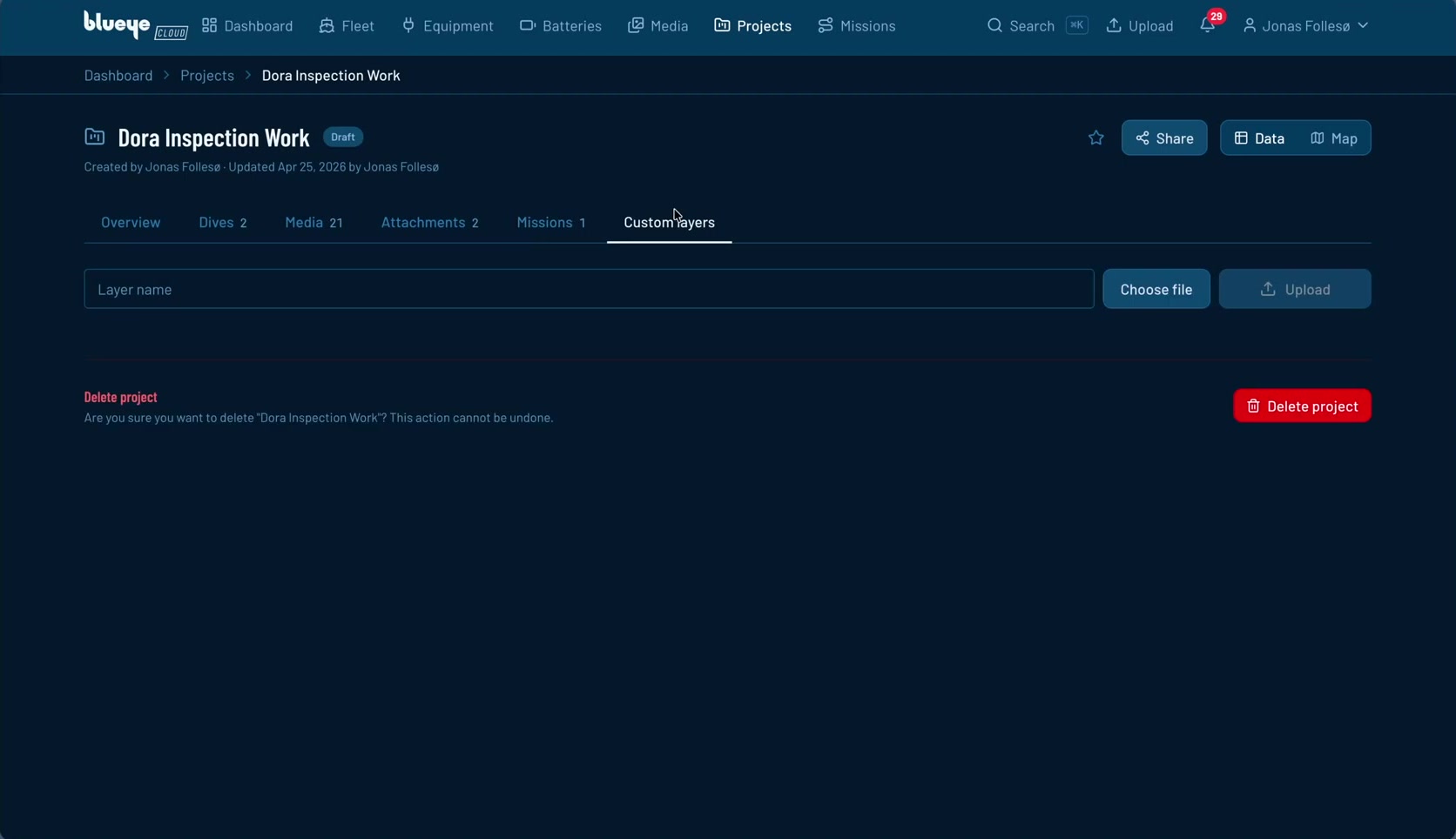

Upload bathymetry maps or vector overlays under Custom layers.
Add image overlays
Upload a reference image — for example a top-down diagram of a ship — under Attachments, or drag and drop it onto the project map. Then scale, rotate, and position it until it lines up with your dive tracks, and adjust the opacity before saving.

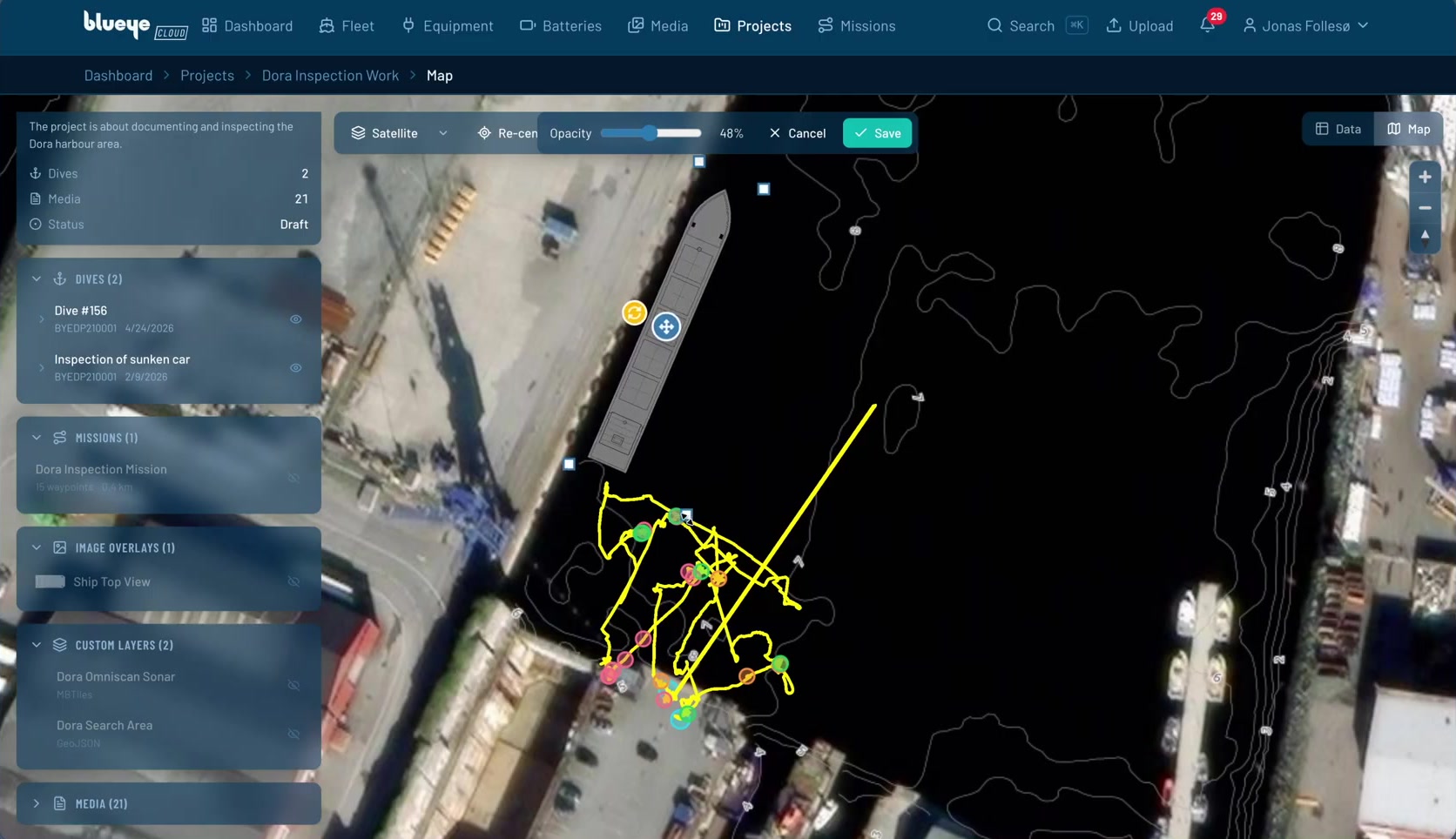

Align a reference image with your dive tracks using the move, rotate, and opacity controls.
Build the report
Use the block-based editor on the project page to draft your findings. Combine text blocks, media blocks with annotated photos and videos, and an optional AI report block (see AI assistance suite). Dive annotations can be rendered as chips or subtle references in the text. Annotation types — their names, icons, and colors — are defined per organization under Settings > Annotation Types.

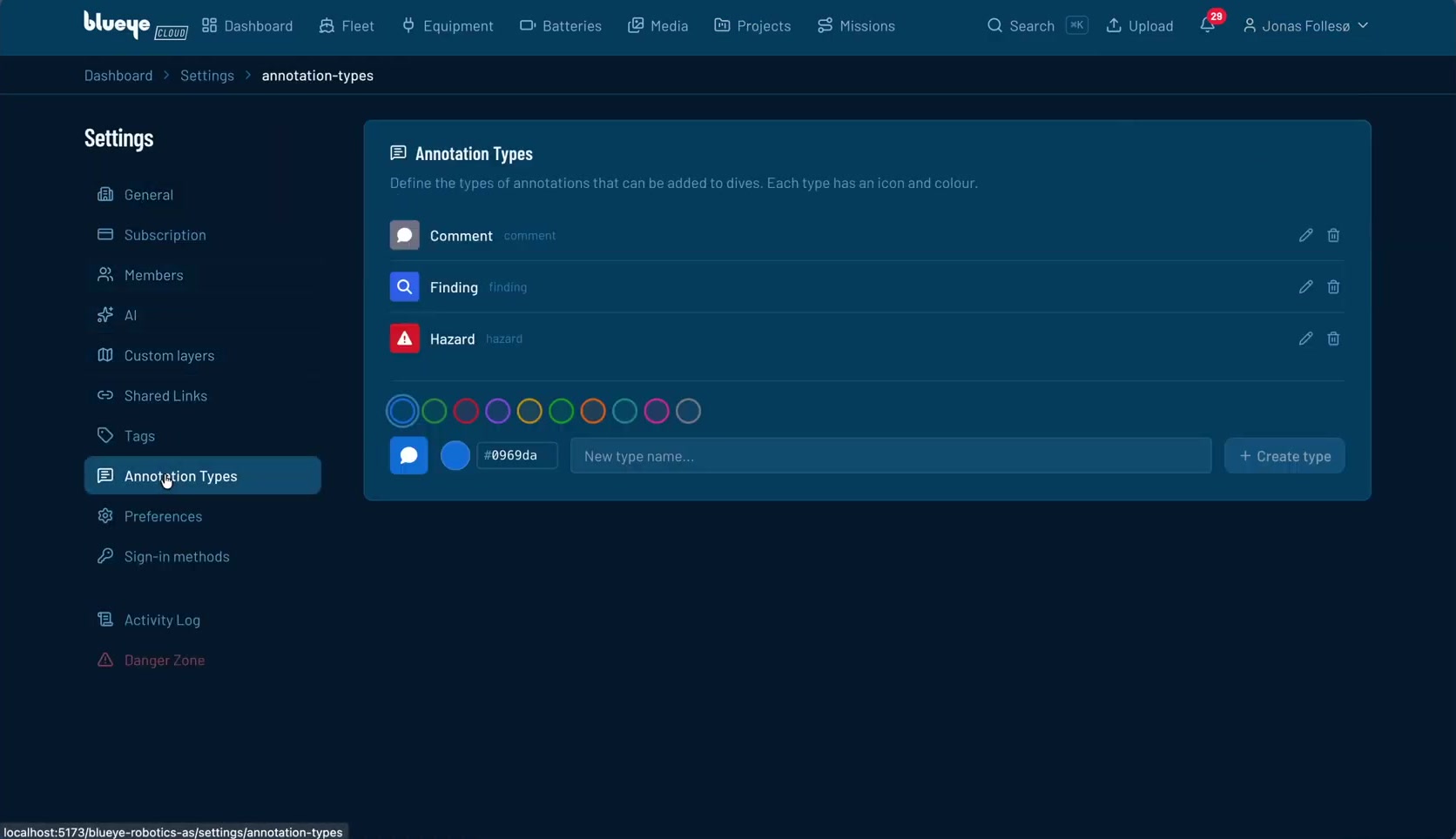

Define your organization's annotation types with custom icons and colors.
Share with stakeholders
Select Share on the project to generate a secure link. Choose between Anyone with the link or Anyone logged in, or invite specific people by email. Recipients can explore the interactive report in their browser — no Blueye account required for link sharing.

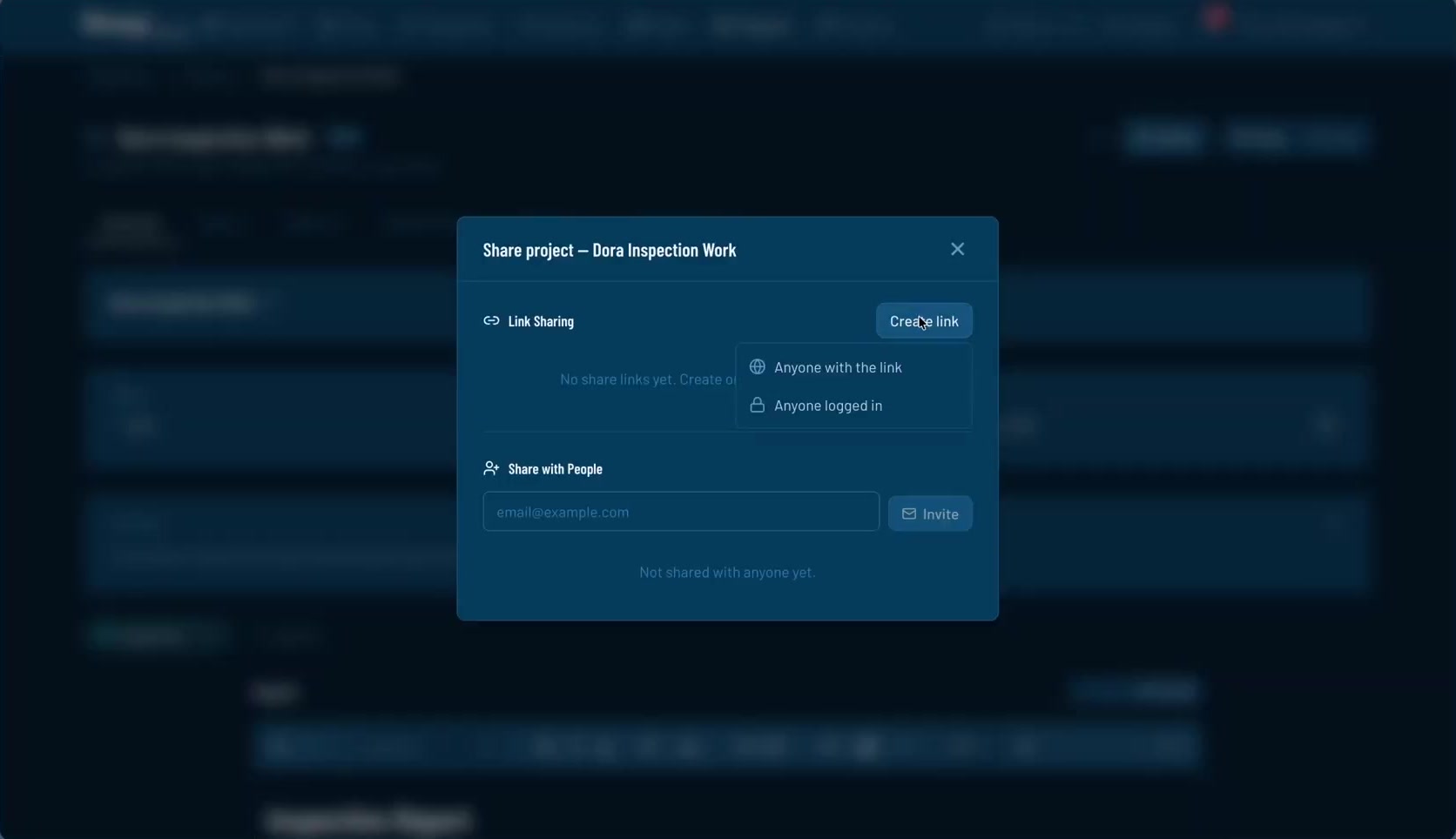

Share the interactive report with a secret link or by email invitation.
